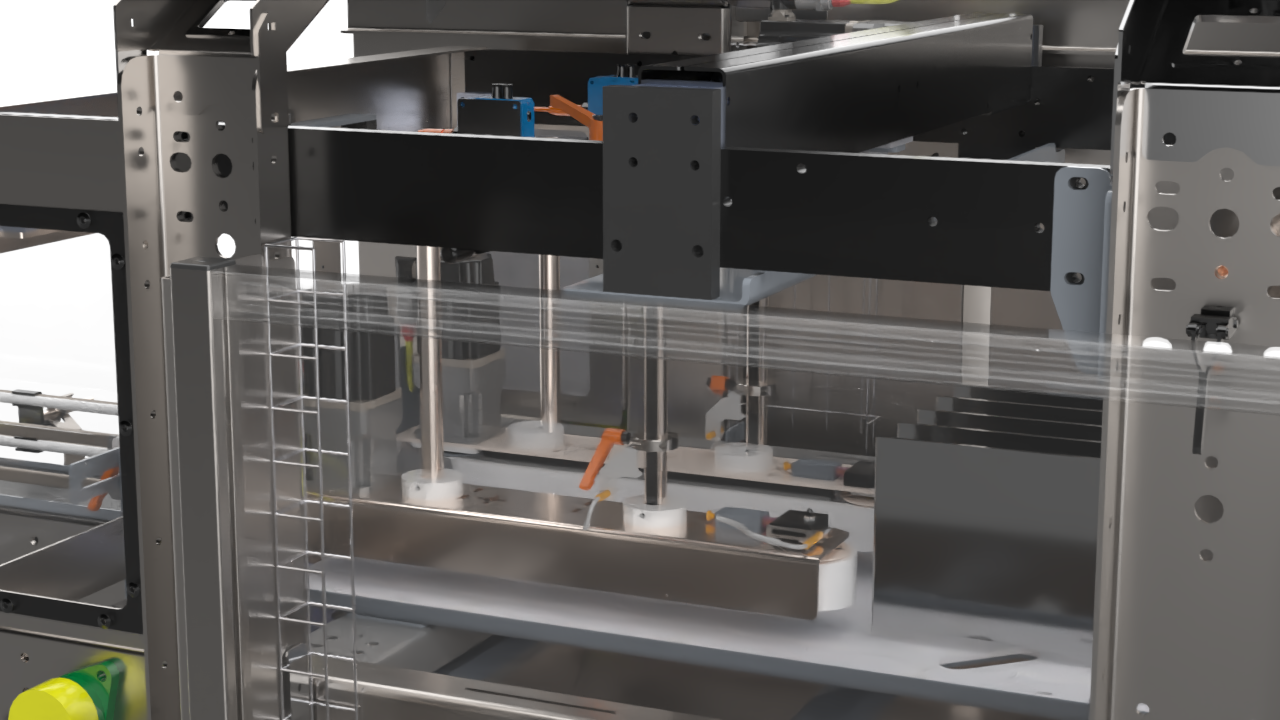

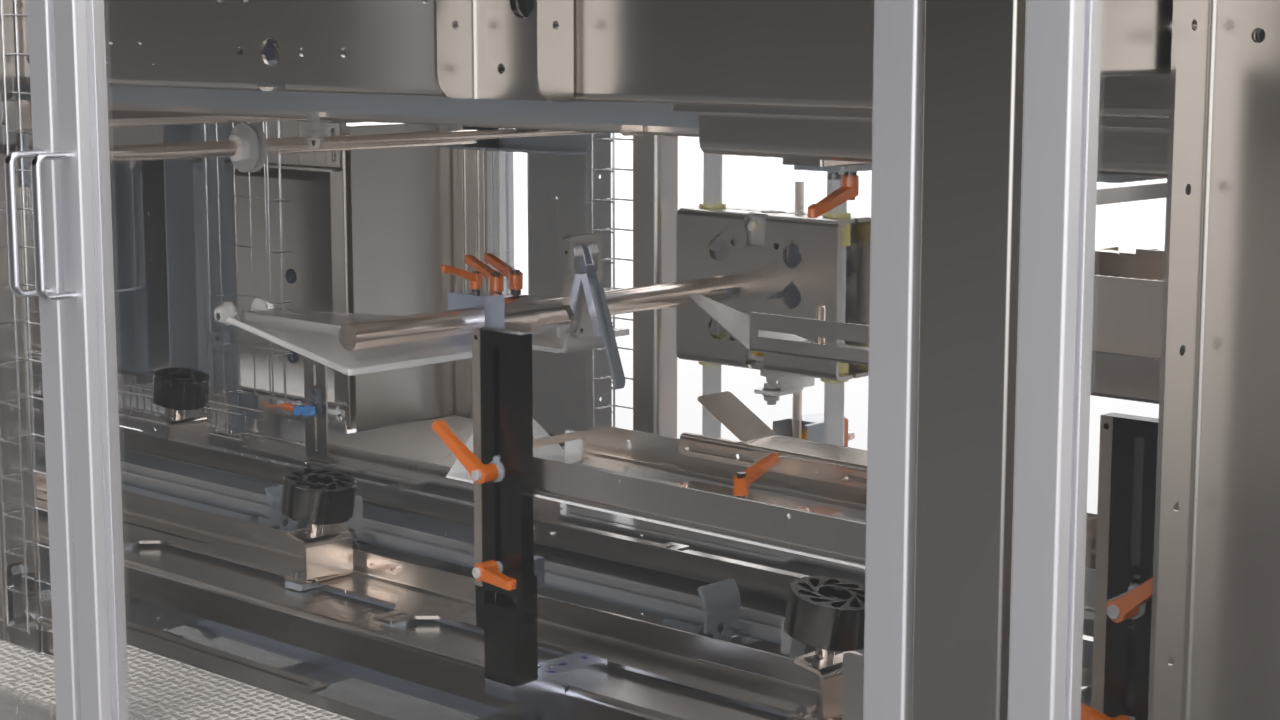

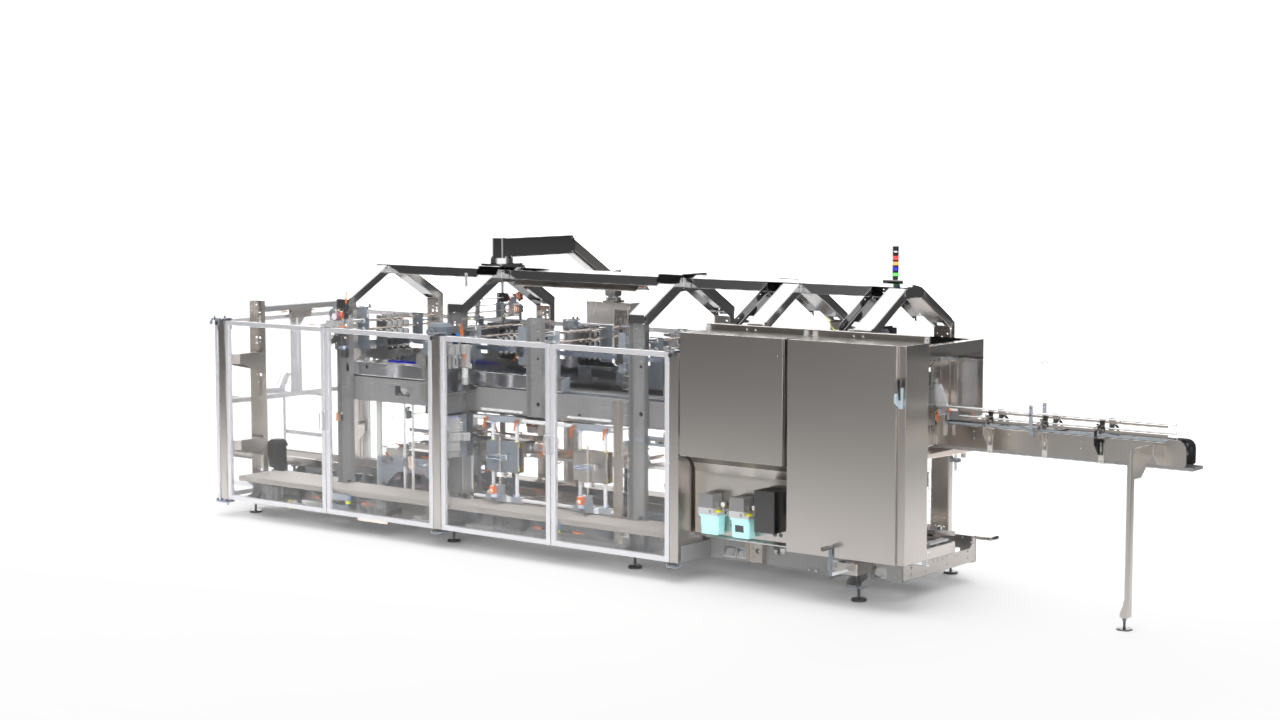

875 Case Packer
This medium speed intermittent motion case packer was introduced in the fall of 2016. It is similar in size as its predecessor, the model 835 packer but with many more features that give it the versatility our customers want and need from their packer.
Benefits:
- Gentle and flexible handling
- Multiple tray or case configuration
- Seamless laning and conveying of unconventionally shaped bottles
- Air transfer for low-pressure handling
- Split infeed conveyor with slow down module
- Superior case and tray handling
- Dual case capability
- Tool-less changeover
Product Specifications
| Voltage | 240 / 460VAC or customer choice |
|---|---|
| Phase | 3 |
| HZ | 50 / 60 |
| Amp | 30 / 15-amp minimum electrical service recommended |
| Air Consumption | 4-12 cfm @ 30 cycles/min |
| Approximate Weight | 8,000 lbs (3628kg) |
| Speed | Up to 30 cycles/min |
| Case Length | 7-36 in [178-914mm] |
| Case Width | 5.5-16.5 in [139.7-419.1mm] |
| Case Height | 2-20 in [50.8-508mm] |
