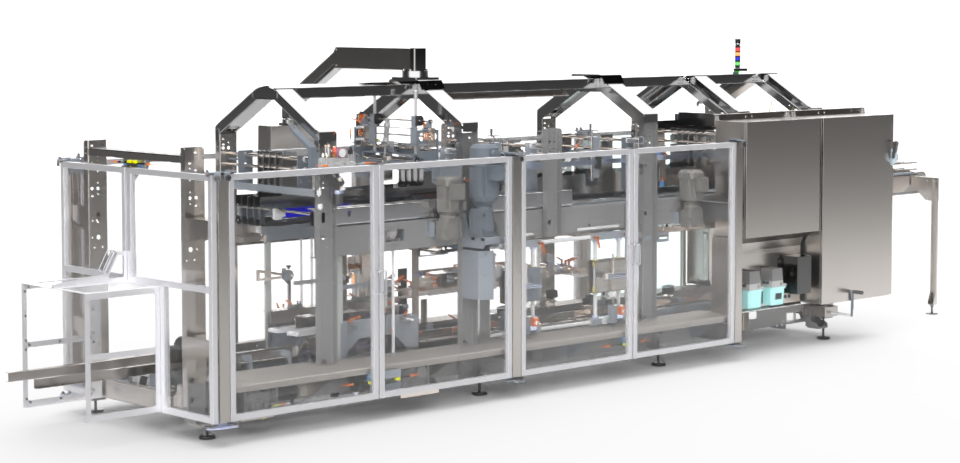

Model 2800 Case Packer
Our standard high-speed, top-load case packer engineered for precision and flexibility. Servo-controlled motion delivers gentle handling and repeatable performance, while intuitive controls and built-in guidance make operation straightforward.
Benefits
- High-speed operation up to 120 cases per minute
- Servo-controlled motion for accuracy and product care
- Tool-less changeover for simplified adjustments
- Virtual Changeover Guide for guided, efficient transitions
- Dual case capability for greater throughput
- Touchscreen controls for easy operation
- Air transfer package for smooth product flow
Low-Friction Product Transfer
Our air transfer technology uses controlled air inflation to gently guide products into position for packing, minimizing mechanical contact while ensuring precise, consistent placement at production speeds. The system handles a wide range of product sizes, shapes, and materials, maintaining control even with lightweight or uniquely shaped items. Its low-pressure design protects product integrity by reducing the risk of scuffing, crushing, or misalignment.
For heavier products or applications where airbags are less effective, a warestrip option provides positive mechanical control for reliable movement and positioning.
Gentle Product Placement
To accommodate a wide range of product types and handling requirements, the Model 2800 offers two packing methods: Lowering Head and Elevator. While both options are designed to deliver accurate and efficient case packing, they differ in how products are transferred into the case.
The Lowering Head uses a servo-driven grid to precisely lower products into stationary cases, making it an efficient solution for high-speed operations where consistent placement and throughput are the priority.
The Elevator, by contrast, raises cases up to the product, providing a stable and versatile platform that supports both traditional drop-pack transfer and enhanced Placehead technology.
For products requiring additional protection, the Placehead can be added to the elevator to gently place items into the case, minimizing drop distance and impact for pressure-sensitive or delicate containers.
Machine Options
Quick-Adjust Lanes
Faster, more precise changeovers. Quick-Adjust Lanes allow operators to set to the values specified in the recipe by turning two crank handles. This eliminates guesswork and ensures repeatable, accurate adjustments every time. By streamlining the process, the system reduces changeover time by 40–50%, saving up to 8 minutes per switch while keeping operators focused on production and efficiency.
Parallel Pack
Faster throughput, built into your footprint. Our Parallel Pack capability evenly distributes cases across two lanes, enabling side-by-side packing at speeds up to 120 cases per minute. By keeping both lanes running simultaneously, the Case Packer delivers higher throughput without expanding your footprint, helping you do more with the space you already have. Add the three-foot Case Merge feature to seamlessly combine both lanes into one at the case packer discharge.

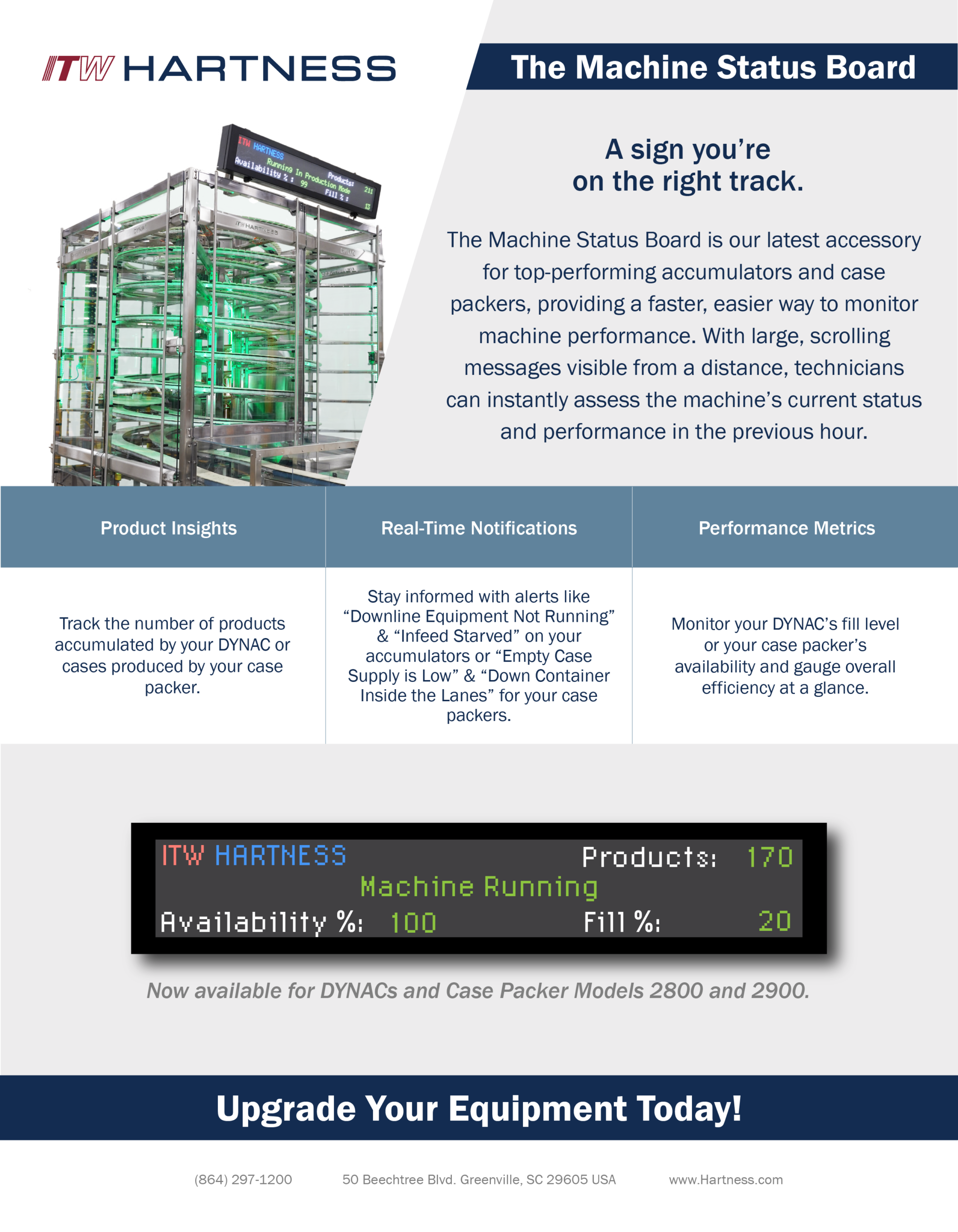

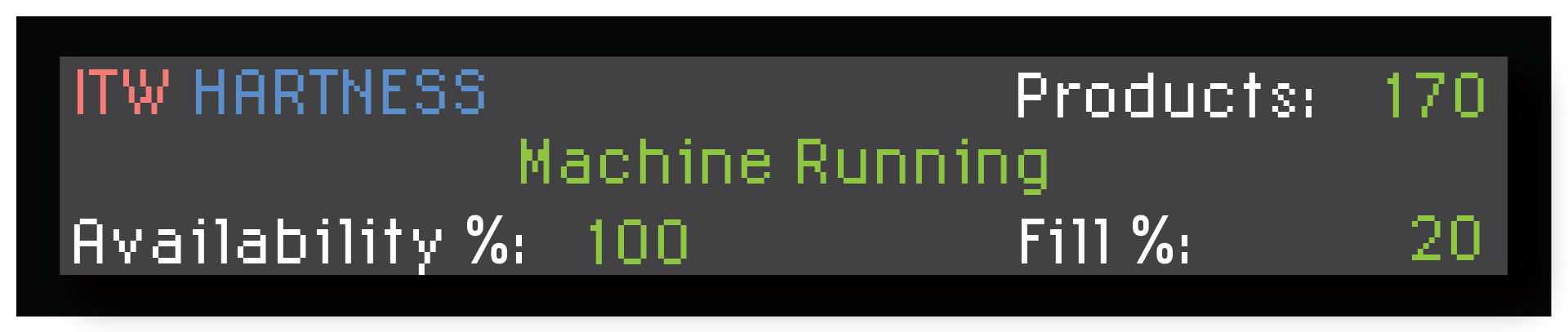

Machine Status Board
The Machine Status Board is our latest accessory for top-performing accumulators and case packers, providing a faster, easier way to monitor machine performance.
With large, scrolling messages visible from a distance, technicians can instantly assess the machine’s current status and performance in the previous hour.
Integrated Laner
The Model 2200 Laner efficiently organizes containers into up to eight lanes, handling a wide range of shapes and sizes, including lightweight or unstable products, with precision. Quick changeovers in five minutes or less keep your line moving, while product clamping helps manage backpressure for smoother downstream flow.
Is the Model 2800 right for your application?
The Model 875 Case Packer provides a lower-cost alternative for speeds less than 30 cycles per minute.
The Model 2900 Case Packer eliminates product shingling with independently driven lanes.
Markets
Beverage
Juice – RTD – CSD – Beer – Spirits – Wine – Water
Personal & Household Care
Soap – Detergents – Oil – Chemicals – Paper Products
